Modern measurement technology

As an innovative technology company, we always have the optimum solution for your testing task: The basis for this is our well-equipped test laboratory with state-of-the-art measuring and testing equipment.

Software

WE WORK WITH THE LATEST SOFTWARE SOLUTIONS FOR YOUR TASKS:

Measurement software:

ZEISS CALYPSO
VGSTUDIO MAX
ZEISS Inspect Optical 3D
ZEISS Inspect X-Ray
ZEISS GEAR PRO

Reverse engineering:

ZEISS REVERSE ENGINEERING
Geomagic Design X

CAD software:

SOLIDWORKS Professional

Statistics & reporting software:

ZEISS PiWeb
Minitab
iqs CAQ Software
Q-DAS qs-STAT

Computer tomography

ZEISS METROTOM 800

X-ray tube: 130 kV
Measuring accuracy: MPE SD(TS): 2.9+L/100 µm
Resolution: 1536 x 1920 pixels (2K detector)
max. measuring volume: [mm] Ø 275 x 360
Accreditation: yes

Determination of dimensional and shape deviations of industrially manufactured products using computer tomography (CT);
Determination of 3D target/actual deviations of industrially manufactured products using CAD data or reference data with the aid of computer tomography (CT) and corresponding evaluation software;
Carrying out analyses in the field of blowhole testing on workpieces with the aid of computer tomography (CT);

ZEISS METROTOM 1500

X-ray tube: 225 kV
Measuring accuracy: MPE SD(TS): 4.5+L/50 µm
Resolution: 3072 x 3072 pixels (3K detector)
max. measuring volume: [mm] Ø 615 x 870
Accreditation: yes

Determination of dimensional and shape deviations of industrially manufactured products using computer tomography (CT);
Determination of 3D target/actual deviations of industrially manufactured products using CAD data or reference data with the aid of computer tomography (CT) and corresponding evaluation software;
Carrying out analyses in the field of blowhole testing on workpieces with the aid of computer tomography (CT);

3D coordinate measuring technology

ZEISS PRISMO ULTRA

Measuring range: 700 x 1000 x 500 mm
Measuring accuracy: MPE_E: 0.5 +L/500 µm
Measuring probe / probe head: VAST-Gold
Additional equipment: integrated turntable
Measuring software: CALYPSO
Accreditation: yes

Determination of dimensional and shape deviations of industrially manufactured products using tactile sensors on 3D coordinate measuring systems (CMM) with rotary table

‍

ZEISS PRISMO VERITY

Measuring range: 1200 x 1800 x 1000 mm
Measuring accuracy: MPE_E: 1.3 +L/400 µm
Measuring probe / probe head: ZEISS VAST gold; ZAS; ZEISS RDS-VAST XXT; CFS (DotScan) 3mm
Measuring software: CALYPSO

ZEISS ACCURA 7

Measuring range: 900 x 1200 x 700 mm
Measuring accuracy: MPE_E: 1.6 +L/333 µm
Probe / probe head: RDS probe head with XXT probe, Vast-XT probe head
Measuring software: CALYPSO

ZEISS ACCURA II

Measuring range: 1200 x 1800 x 1000 mm
Measuring accuracy: MPE_E: 2.2 +L/300 µm
Probe / Probe head: VAST-Gold probe head
Measuring software: CALYPSO

ZEISS O-INSPECT 863 in the Q-Tech measurement laboratory

ZEISS O-INSPECT 863 (OPTICAL-TACTILE)

Measuring range: 800 x 600 x 300 mm
Measuring accuracy: MPE_E: 1.7 + L/250 μm
Probe / probe head: VAST XXT tactile probe; Discovery V12 GigE optical zoom sensor; CFS (DotScan) 3mm
Measuring software: CALYPSO

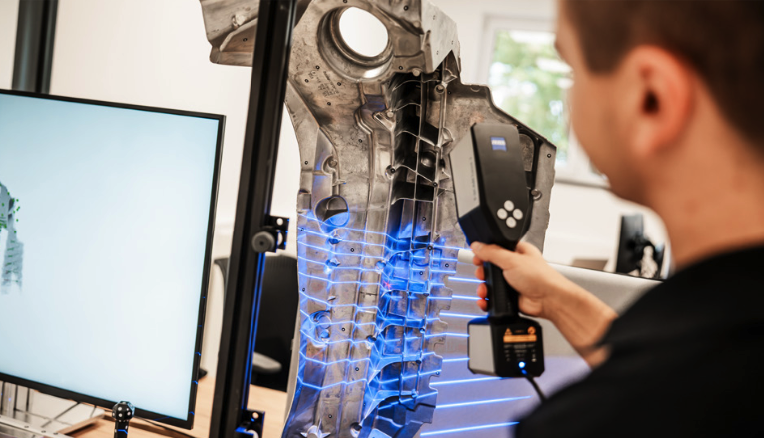

Optical 3D digitization

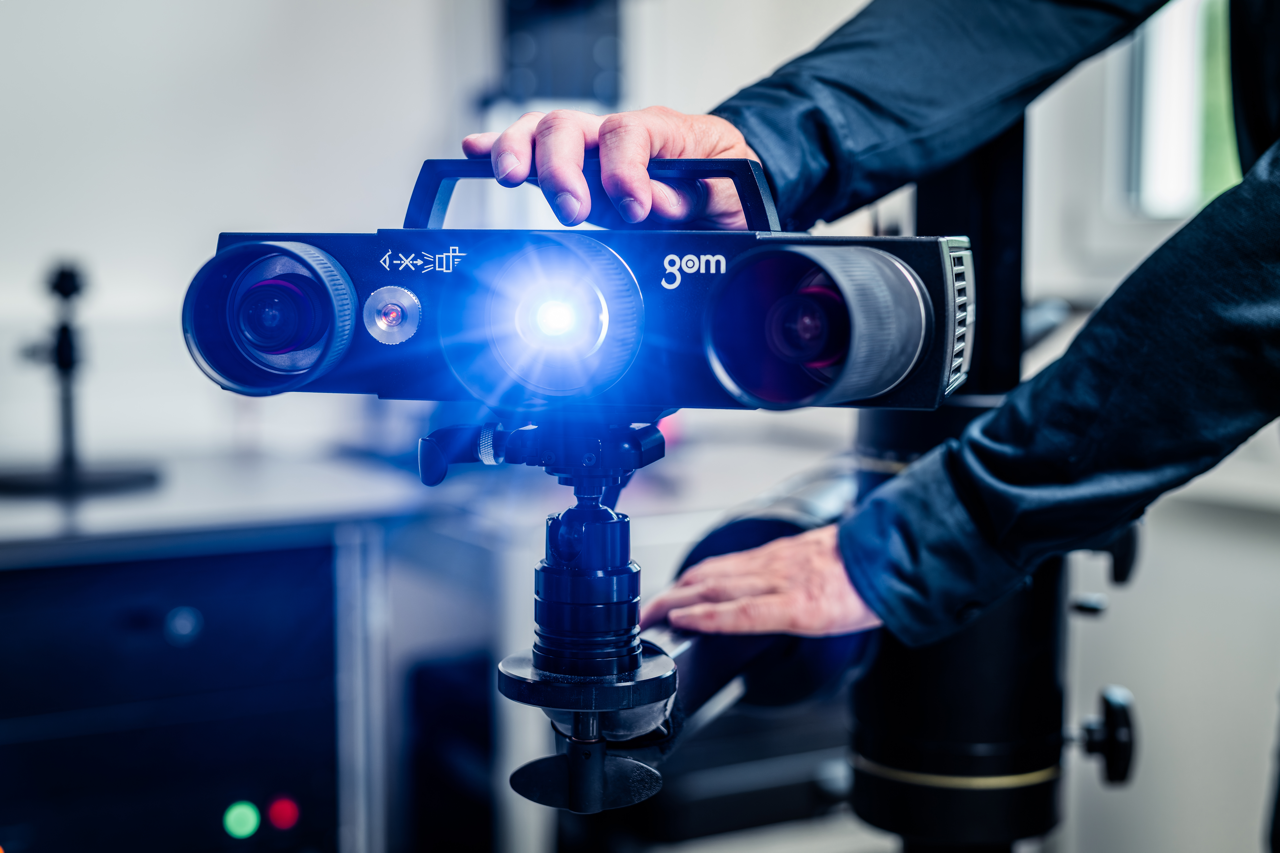

GOM ATOS Q 8M

Light source: LED
Measuring points per scan: 8 million
Measuring range (mm²) [mm²]: 100 × 70 - 500 × 370
‍Point spacing(mm) [mm]: 0.04 - 0.15
‍Measuring volume: 100, 270, 500

Optical measurement technology

ZEISS O-INSPECT 863 (OPTICAL-TACTILE)

Measuring range: 800 x 600 x 300 mm
Measuring accuracy: MPE_E: 1.7 + L/250 μm
Probe / probe head: VAST XXT tactile probe; Discovery V12 GigE optical zoom sensor; CFS (DotScan) 3mm
Measuring software: CALYPSO

OGP SMARTSCOPE FLASH 200

Measuring range: 200 x 200 x 150mm
Measuring accuracy: X/Y: E2=1.8+6L/1000 µm; Z: E1=3.0 +6L/1000 µm
Measuring software: MeasureX measuring software

Contour/roughness measurement

ZEISS SURFCOM NEX 031 SD-14 N

Measuring range: feed path X=100 mm / scanning stroke up to ± 30.0 mm
Sensor measurement deviation: ± 1.5+ (2H/100) µm
Software: ACCTee PRO
Options: Target/actual profile comparison

Q-TECH SERVICES

In the field of measurements, we are your accredited and experienced measurement service provider in all common 2D and 3D measurement methods, as well as in industrial computed tomography.
